Ditec PWR: A COMPLETE RANGE

Ditec PWR is the new range of electromechanical actuators for swing gates in residential, condominium and industrial applications. They are designed and developed to ensure quality and strength, while making installation and maintenance easy.
A complete series made up of 24 Vdc motors and 230 Vac motor: a 24 Vdc motor for wings up to 2.5 m (Ditec PWR 25), a 24 Vdc motor for wings up to 3.5 m (Ditec PWR 35), three 24 Vdc motors for wings up to 5 m (Ditec PWR 50 series) and one 230 Vac motor for wings up to 5 m.

SIMPLIFIED installation

Reduces the time needed to install new motors on the PWR series by 60%!

  • automation system includes asymmetric mechanical opening and closing stops
  • one-handed installation: the hexagonal impression makes it easier to attach the actuator to the column
  • pre-drilled plates for fast installation, with robust bushings for optimum distribution of forces along the front connection pin
  • installation mounting tool includes a spirit level to perfectly calibrate heights in a single step

THE RIGHT AUTOMATION SYSTEM for all applications

  • set-up for remote manual release, useful when the automation system cannot be reached during an emergency
  • magnetic limit switch provision (only on PWR35H) for more accurate speed adjustment
  • ideal solution for applications which require fast opening and closing

     SIMPLE ADJUSTMENT, FAST INSTALLATION

    • precise adjustment of mechanical limit stops directly on the screw (PWR50H, PWR50HR and PWR50AC)
    • magnetic limit switches already assembled and wired (PWR50HV)
    • slotted mounting plate to quickly and easily weld the bracket

    SAFE

    The 24-Volt DC virtual-encoder technology enables constant electronic control of the impact forces and immediate obstacle detection, ensuring that the operating device stops or motion is reversed (if configured) when obstacles are detected. If this is not enough, you can add magnetic limit switches (on PWR 35, already assembled on PWR 50). Additionally, in the event of a power outage, the electronic control panel intervenes, activating the batteries which ensure correct operation of the system.

    The innovative proprietary continuous position monitoring and control system (Ditec Virtual Encoder) is available also in 230V AC version, thanks to the new control unit Ditec LCA, letting you control motors without encoders with the utmost precision and safety.

    EASY TO MAINTAIN

    Thanks to the protected loading valve inside the manual release area, universal lubricant (type EP1) can be added simply using a manual lubricator, with no need to disassemble the actuator.

    Contact Us

    Distinctive features

    Ditec PWR 25

    24 V DC motor

    For wings up to 2.5 m

    IRREVERSIBLE with limit stops

    UP TO 150.000 cycles

  • simply loosen a single screw to remove the plastic cover and access the electrical wire terminals
  • key-operated manual release
  • actuator consisting of two robust aluminium die castings which guarantee optimum protection against shearing forces and torsion

    •

    Ditec PWR 35

    24 V DC motor

    For wings up to 3.5 m

    IRREVERSIBLE with limit stops

    UP TO 300.000 cycles

    • simply loosen a single screw to remove the plastic cover and access the electrical wire terminals
    • key-operated manual release
    • actuator consisting of two robust aluminium die castings which guarantee optimum protection against shearing forces and torsion
    • removable cover to access the screw without removing the actuator from the wing
    • loading valve to inject EP1 universal grease
    • notches to adjust magnetic limit switches (optional) during opening and closing and supports for cable stop clamps

    24 V DC motor

    For wings up to 5 m

    Ditec PWR50H: IRREVERSIBLE with limit stops UP TO 450,000 CYCLES

    Ditec PWR50HV: IRREVERSIBLE with magnetic limit switches UP TO 450,000 CYCLES

    Ditec PWR50HR: REVERSIBLE with limit stops UP TO 600,000 CYCLES

    • manual release designed to guarantee opening with minimal effort
    • removable cover for easy access to the screw for adjustment and maintenance
    • mechanical limit stops already assembled both in opening and closing (magnetic limit switches on PWR50HV)
    • dustproof brushes to protect the screw

    230 V AC motor

    For wings up to 5 m

    Ditec PWR50AC: IRREVERSIBLE/REVERSIBLE with limit stop in opening UP to 450.000 CYCLES

    • manual release designed to guarantee opening with minimal effort
    • removable cover for easy access to the screw for adjustment and maintenance
    • mechanical limit stop in opening
    • limit switch in opening and closing with micro (Optional Ref: PWRACF)

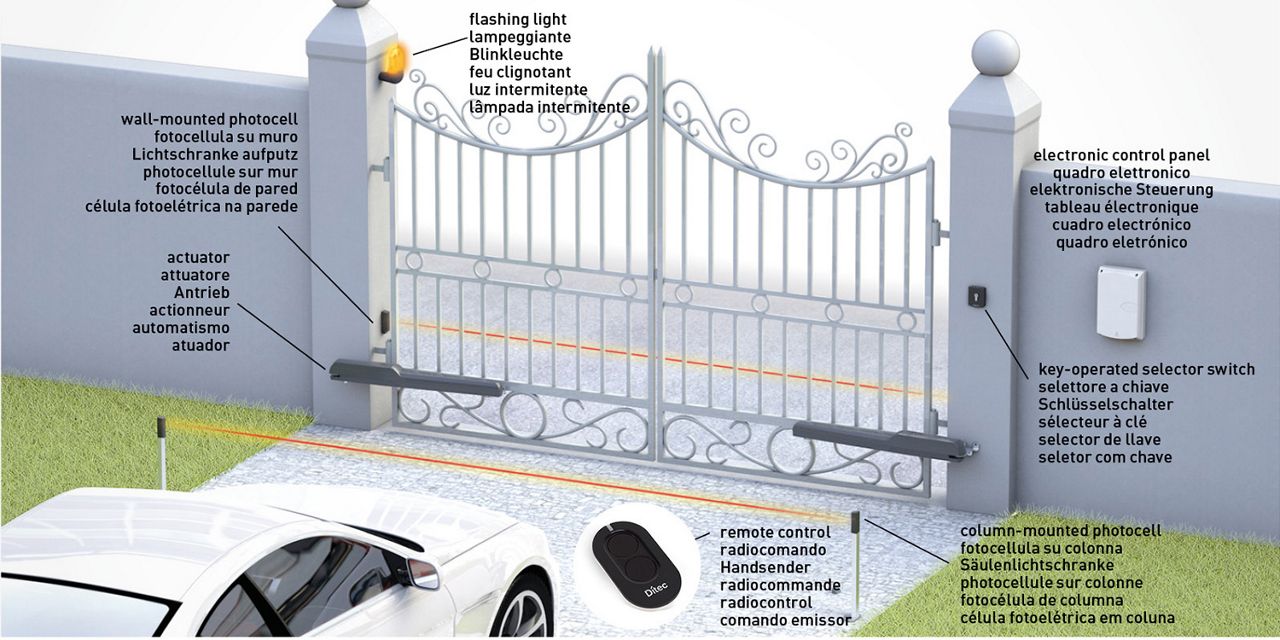

    Typical installation

    The automation system can be completed with Ditec command, control and safety devices
    Ditec PWR - Typical installationDitec PWR - Typical installation

    Accessories

    Ditec PWR accessories are easy to choose:
